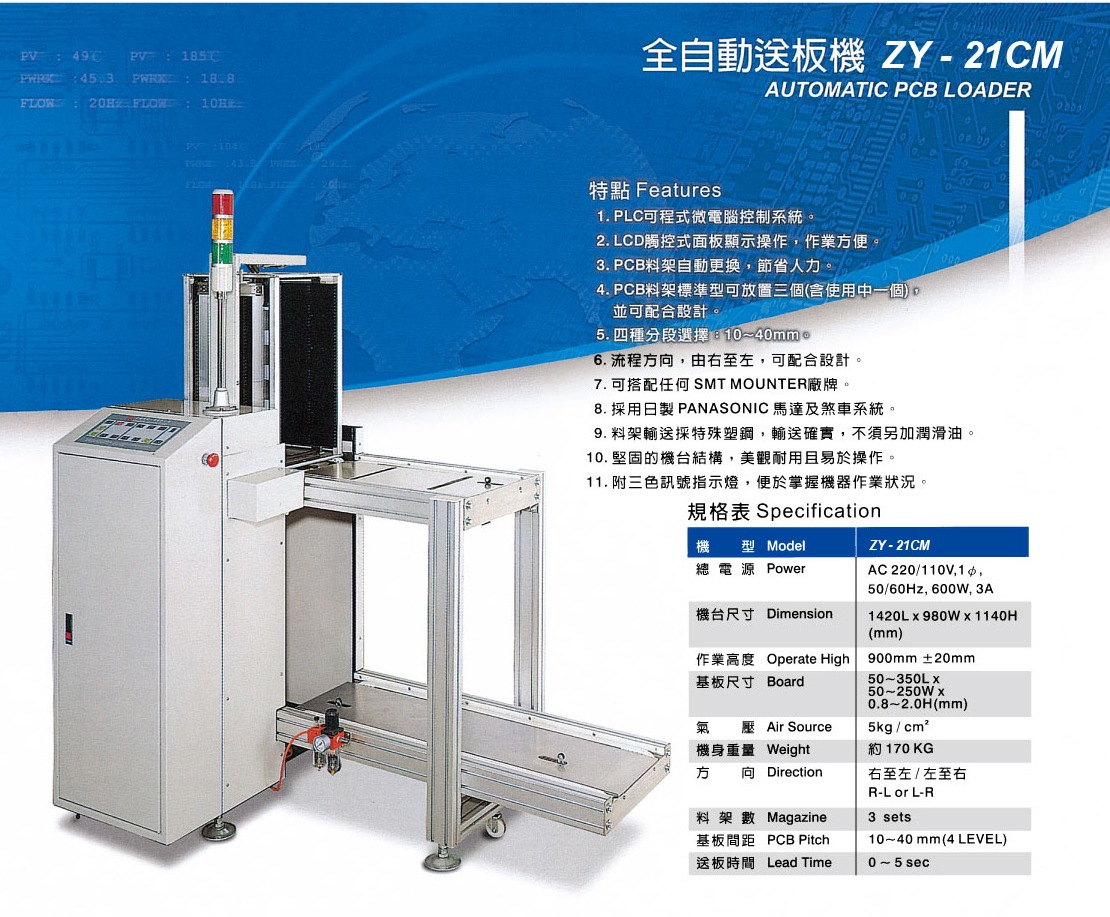

ZY-21CM Features :

1. PLC programmable microcomputer control system.

2. LCD touch panel display operation, easy operation.

3. PCB rack automatic replacement, save manpower.

4. Standard PCB rack can be placed in three (including the using one), can be customized.

5. Four segment selection: 10 ~ 40mm.

6. Flow direction from right to left, can be customized.

7. Can be used with any SMT MOUNTER brands.

8. Use Japanese PANASONIC motor and brake system.

9. Rack conveying use special plastic steel, conveying indeed, no need add lubricating oil.

10. Strong machine structure, beautiful, durable and easy to operate.

11.With three color signal light, easy to master the machine operation status.
