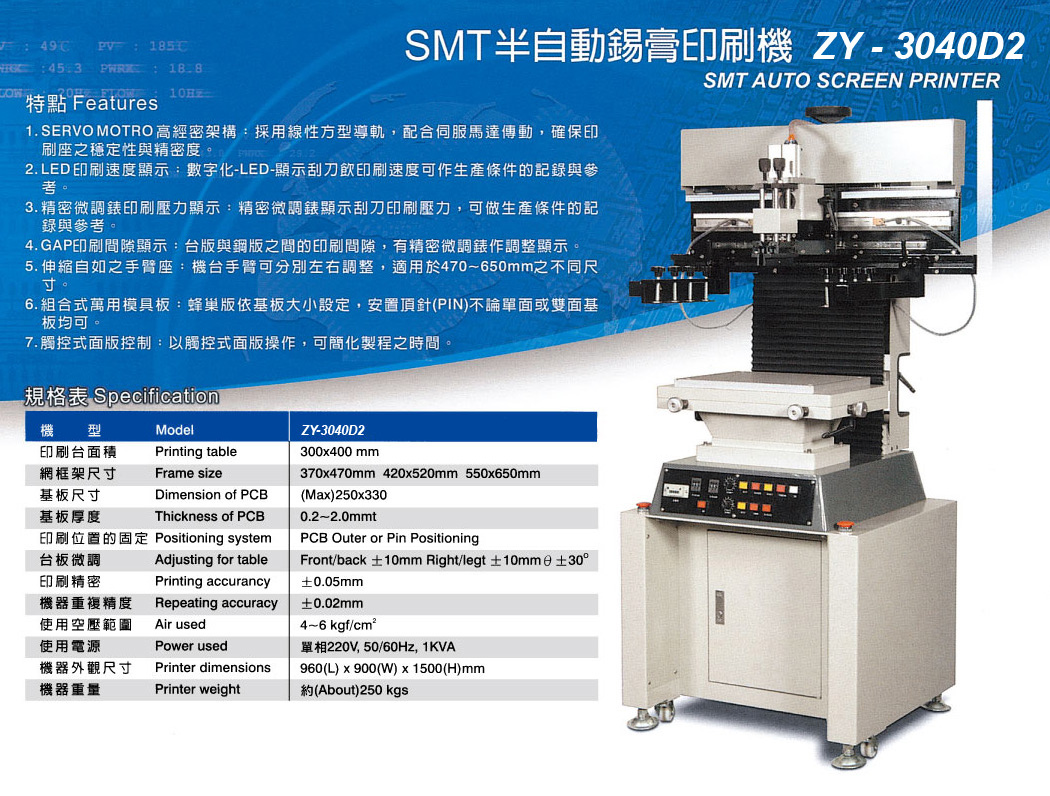

ZY-3040D2 Features :

1. High precision SERVO MOTRO architecture :
    Use linear guide rail with servo motor drive which ensure the printing in stable and precision.

2. LED printing speed display :
    Digital LED display with blade guiding speed.  Good for production condition record and reference.

3. Micrometer printing pressure indication display :
    Build with Micrometer for blade printing pressure display.  Good for production condition record and
    reference.

4. Printing gap display :
    Use Micrometer printing pressure indication for printing gap between flatbed and steel plate adjusting
    display.

5. Adjustable printing arm :
    The machine  can be  adjusted  arms  respectively, suitable for different  sizes between
    470 ~ 650mm.

6. Combined  with  universal die plate :
    Honeycomb type plate can be set base on base plate dimension.  Thimble pin regardless of  single-
    side  or double-side , all can be used.

7. Touch panel control :
    Simplify process with touch panel control, can be saved operation time.
