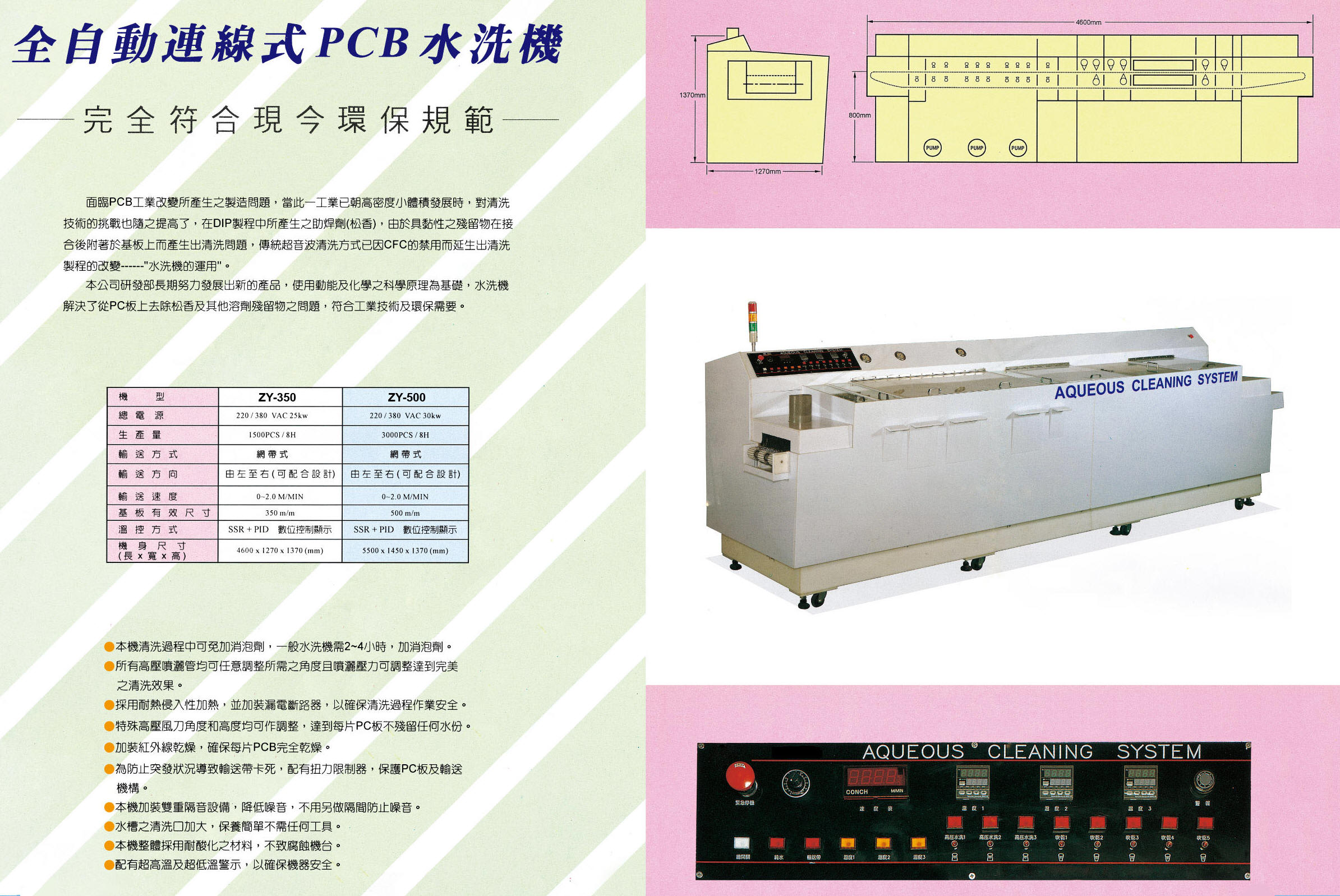

ZY-300 / ZY-500 Features :
Facing the manufacturing PCB
industrial change, generated
with many environment issues, when the industry
is toward
to high density, small
volume development,
cleaning technology challenge have
been being increased. The
flux is
generated in
the DIP process (rosin), the
residue of stickiness in the
joint after attached to the base
plate to produce the
clean issues.
The traditional way of ultrasonic
cleaning way has been banned by CFC
and derives cleaning
process changes..." Use
the Aqueous
Cleaning System"
Research and Development Department
of our company long-term efforts to
develop new products, the
use of kinetic
energy and chemical base
on the scientific principle, Aqueous
Cleaning System
solves the problem of removal
of rosin and
other solvent residue from the
PC board for industrial technology
and environmental protection needs.
Model No. |
ZY-350 |
ZY-500 |
Power |
220 / 380 VAC 25kw |
220 / 380 VAC 30kw |
Productivity |
1500PCS / 8H |
3000PCS / 8H |
Conveying Method |
Mesh type |
|
Conveying Direction |
From left to right (can be customized) |
|
Conveying Speed |
0 ~ 2m/Min |
|
Base board dimension |
350 mm |
500 mm |
Temperature Control Method |
SSR + PID digital control display |
|
Machine
Dimension |
4600 x 1270 x 1370 (mm) |
5500 x 1450 x 1370 (mm) |
