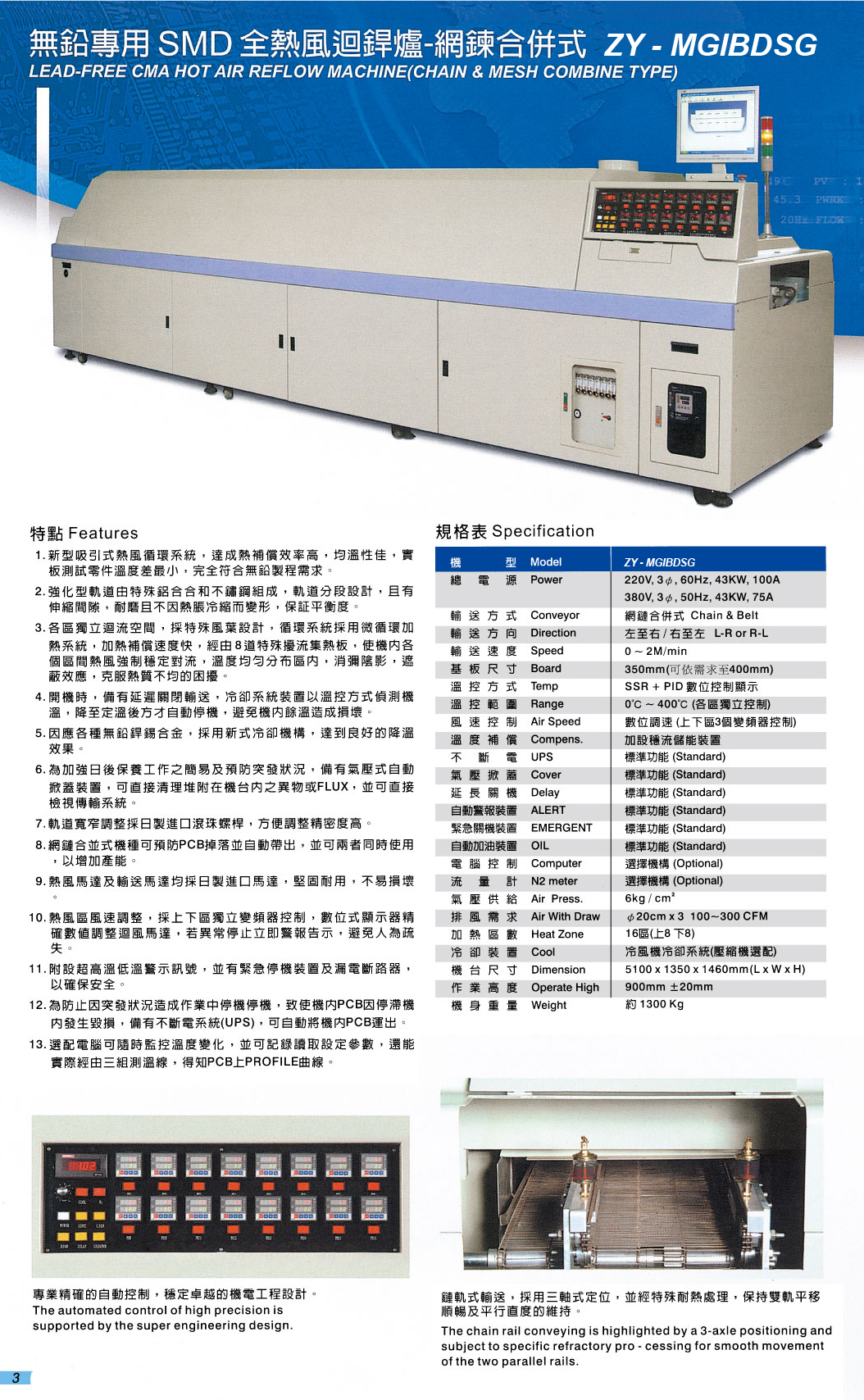

ZY-MGIBDSG Features :
1. New attraction
type hot air circulating system, a high
efficiency thermal compensation, temperature
uniformity is
good, minimum
temperature difference, fully meet
the demand for lead
free process
2. To strengthen the track is composed of special aluminum alloy and stainless steel, rail section design, and
adjustable gap, wear resistance and no deformation due to thermal expansion and contraction, ensure the balance
degree
3. Independent reflux space, special fan design, circulation system adopts the microcirculation of the heating
system, speeding of heating compensation, through the 8 special spoiler heat collection plate, for each interval of hot
air forced steady convection, uniform temperature distribution in area, eliminate shadow and shielding effect, to
overcome the uneven heat trouble.
4. Boot, with turn off delay delivery, cooling system with temperature control detecting machine temperature, only down
to constant temperature then automatic shutdown, avoid the damage caused by the residual temperature
5. For all kinds of lead-free solder alloy, use new cooling mechanism, achieve good cooling effect
6. To strengthen the maintenance of simple and prevention of sudden condition, equipped with pneumatic automatic lid
lifting device, can be cleanup directly of the attached foreign body or FLUX in machine, which can be able to examine
the transmission system directly.
7. Track width adjusting use the ball screw which imported from Japan, convenient adjustment and high precision
8. Chain & Mesh combined type can prevent PCB fall and automatic belt out, and can use both at the same time to
increase the productivity
9 Hot air motor and conveying motor were collected on the system of import motor from Japan, sturdy and durable, not
easy to damage
10. Hot air speed adjustment, mining independent of inverter control, digital display, accurate numerical adjusting the
hot air circulation motor, if abnormal stop immediately alert notices, avoid human errors
11. With super high temperature and low temperature warning signal, and the emergency stop equipment and leakage
breaker, to ensure safety
12. Avoid the operation stop due to emergencies, which resulted in PCB damage, with the UPS system, can automatically
send the PCB inside the machine
13. With computer (option) can monitor the temperature change, not only can record / read of set parameters, but also the
actual by three sets of temperature line, knowing that PROFILE curve on PCB
